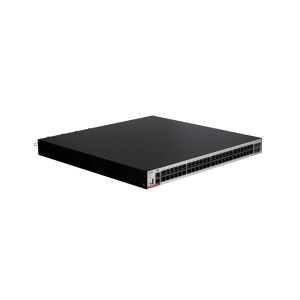

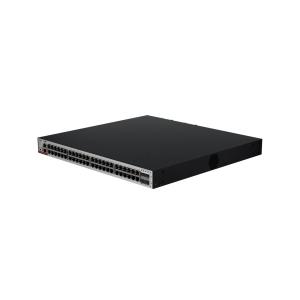

48-Port Gigabit Ruijie Switch With 4x 10G Uplinks Layer 3 Routing &
Advanced Security RG-S5310-48GT4XS-P-E
The Ruijie RG-S5310-48GT4XS-P-E is a high-density 48-port Gigabit
Ethernet switch with 4x 10G SFP+ uplinks, designed for enterprise
networks, data centers, and campus environments. This Layer 3
managed switch delivers robust performance, advanced security, and
seamless scalability for demanding business applications.
Key Features & Benefits
High-Speed Connectivity – 48x 1Gbps RJ45 ports + 4x 10G SFP+
uplinks for high-bandwidth aggregation.
Layer 3 Routing – Supports static routing, OSPF, RIP, and BGP for
efficient inter-VLAN routing.
Enterprise-Grade Security – 802.1X, ACL, DHCP Snooping, and IP
Source Guard protect against unauthorized access.
Advanced QoS & Traffic Management – Prioritizes critical
applications (VoIP, video conferencing) with DSCP/CoS policies.
Cloud & Centralized Management – Supports SNMP, CLI, Web UI, and
integrates with Ruijie Cloud platforms.
High Reliability – ERPS (Ethernet Ring Protection) ensures <50ms
failover, while dual power supply (optional) enhances uptime.
Energy Efficient – IEEE 802.3az (EEE) reduces power consumption on
idle ports.
Technical Specifications (Ruijie RG-S5310-48GT4XS-P-E)
| Parameter | Specification |
|---|
| Ports | 48x 10/100/1000BASE-T, 4x 10G SFP+ |
| Switching Capacity | 256 Gbps |
| Forwarding Rate | 95.2 Mpps |
| Routing Protocols | Static, RIP, OSPF, BGP |
| Security Features | ACL, 802.1X, Port Security, IP Source Guard |
| Management | CLI, Web, SNMP, sFlow, RMON |
| Power Supply | Single (Dual PSU optional) |
| Dimensions (WxDxH) | 440 x 260 x 44 mm |
Ideal Applications
Enterprise Networks – High-density workstation connectivity with
10G uplinks.
Data Centers – Low-latency, high-throughput aggregation.
Campus & Education – Supports multimedia e-learning and IP
surveillance.
Healthcare & Hospitality – Secure, reliable connectivity for
critical services.
Why Choose Ruijie RG-S5310-48GT4XS-P-E?
This 48-port managed switch combines scalability, security, and
performance, making it perfect for growing businesses. With Layer 3
routing, 10G uplinks, and cloud-ready management, it ensures a
future-proof network infrastructure.
Upgrade your network with Ruijie’s reliable, high-performance
switching solution today!
